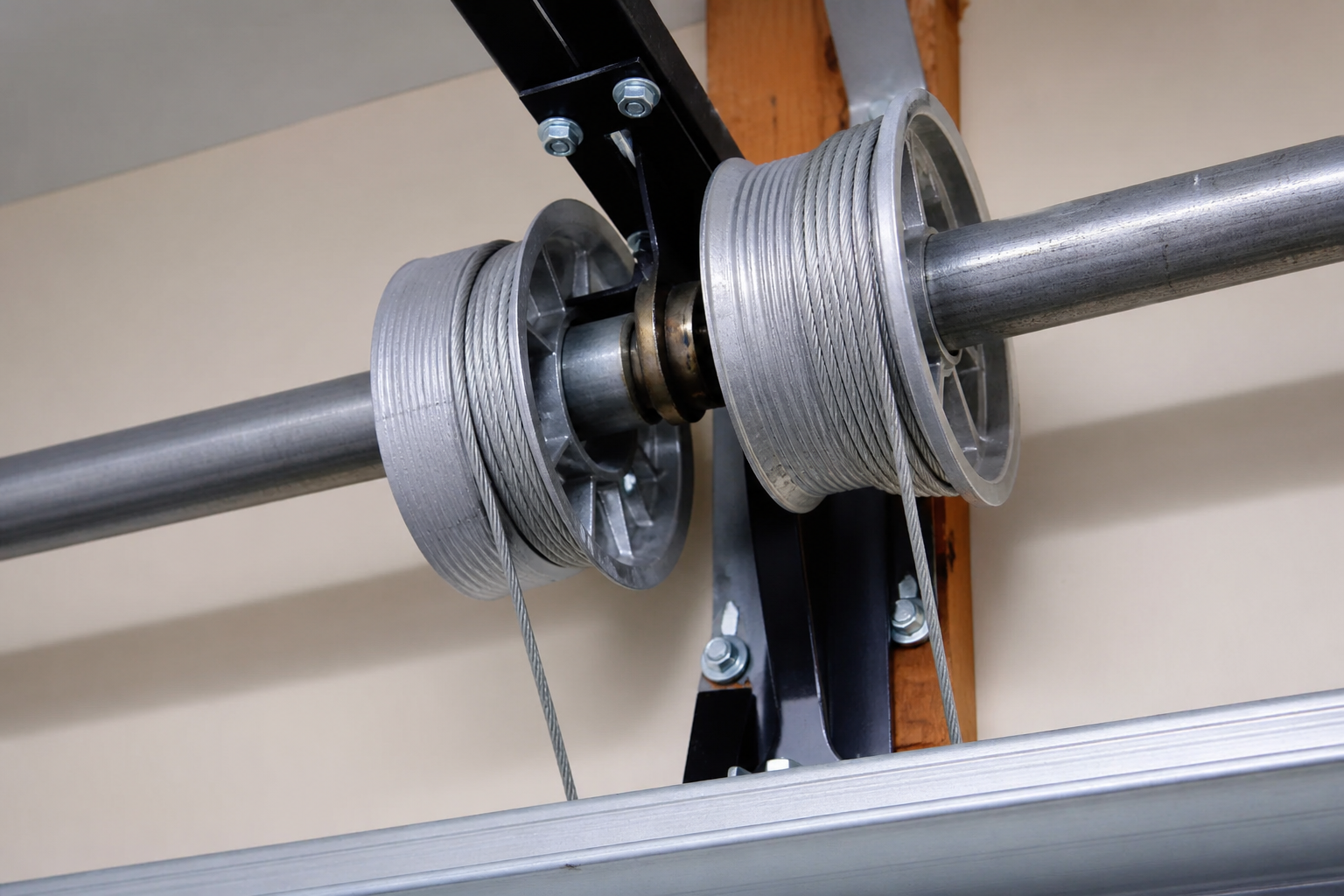

Cable drums wind the lift cables onto the torsion shaft so both sides of the door rise together. When a drum cracks, a set screw slips, or the cable groove wears deep, one edge of the door drops and the opener fights a crooked load. Our licensed technicians replace the correct drum size, reset the set screws, and pair new cables when the wind path is damaged.
Not every spool on a torsion shaft is interchangeable. Drum diameter, cable groove, and left/right hand determine how much cable winds per revolution. Installing the wrong size leaves the door short of the header or stacking cable off the drum face.
Most single and double doors across Vaughan and Toronto use four-inch or five-inch class drums sized for typical seven-foot and eight-foot openings. Cables nest in a spiral groove and stack neatly as the door rises into the horizontal track. Wear shows first as polished flats in the groove or as a cable that climbs the drum rim instead of staying in the flute.
High-lift track raises the door higher before it turns horizontal, clearing tall vehicles or ceiling storage. The drums change how cable pays out relative to the vertical travel, so a standard drum cannot simply be swapped onto a high-lift shaft. We measure the existing drums and track before ordering replacements for Markham and Mississauga high-lift installs.
Low-headroom systems use special drums and dual-track hardware when ceiling clearance is tight. Cable wind paths differ from standard residential drums. Mixing parts from a standard kit into a low-headroom door is a frequent DIY mistake that leaves one side short of cable and the bottom section tipped.
Each drum locks to the torsion shaft with set screws that bite into the steel. Vibration, incomplete torque from an earlier repair, and shaft flats that have been chewed smooth all let the drum rotate independently of the spring. One side of the door then loses cable wind while the other side still lifts — the classic crooked-door look that often gets blamed on the opener alone.
Retightening alone is not always enough. If the set screw tip has rounded a hole in the shaft, we may need to rotate the drum to fresh steel, replace a damaged drum, or address bearings that let the shaft walk. Forcing the opener with a slipped drum stretches cables and can kick rollers toward the track flange.
One bottom corner is higher, or the door looks racked when closed. Measure both sides before running another cycle.
Slack cable on a single side points to drum slip, a broken cable end, or a cable that jumped the groove.
A spinning drum against a still shaft — or a dry centre bearing — produces noise overhead that oil on the track will not fix.
Paint witness marks that no longer line up, or set screws that sit proud after vibration, mean the clamp has moved.
A new cable on a scored drum will fray again. A new drum with an old frayed cable will cut a fresh groove in weeks. We treat the lift path as one assembly when wear shows on either part.
Soft cast drums develop sharp edges where cables have sawed into the groove. Left and right hands must stay correct, and both drums on a residential shaft should match diameter and style. We also verify that cable stops seat fully in the drum pocket so the end cannot pull free under load.
Aircraft-style lift cables take the full door weight on each side. Frays near the bottom bracket, rust at the drum wind, and stretched strands that no longer sit in the flute all call for cable replacement alongside drum work. We install matched pairs so both sides age together.
Torsion systems store significant energy. Every drum job begins with unloading the springs safely before any set screw or cable is disturbed.
We disconnect the opener, support the door, and unwind torsion springs with proper winding bars so the shaft can be serviced without sudden release.
Failed drums and cables come off. We match replacement drums to the door height and track style, and stage a cable pair when grooves or strands show wear.
New drums lock to the shaft with fresh set-screw torque on clean steel. Cables seat in the pockets, wind evenly, and the springs are rewound to the correct turns for the door weight.
We confirm both bottom corners sit level, cables stay in the grooves through full travel, and the opener force settings are appropriate. You get a written summary of parts replaced.
If the door came off the track during the slip event, we complete realignment in the same visit when rollers and track are still serviceable. Springs that have lost cycle life may be recommended for replacement at the same time so the new drums are not fighting a tired counterbalance.
Most residential drum work in the GTA lands in the ranges below. High-lift and low-headroom drums, or doors that also need springs, are priced on the written estimate after inspection.
Drums still sound, cables intact, shaft bite restored and door re-levelled.
Both drums replaced with matching hands and diameter for a standard torsion door.
Full lift-path package when grooves and cable strands are both worn.
From Vaughan we service cable drums throughout York, Toronto, Peel, Halton, and Durham. Related spring replacement and cable work often share the same appointment when the counterbalance shows age.
Describe whether the door is crooked, a cable hangs loose, or you hear grinding at the torsion shaft. A technician reviews the request, stages matching drums and cables when needed, and schedules the visit. Estimates are written before springs are unloaded.
