Kinked or twisted channel
Look along the inside face of each section. A straight strut should run true; a sharp bend, twist, or crushed flange means the steel has yielded and should be replaced rather than hammered flat.
Panel Reinforcement
Garage Door Strut Repair in Toronto & the GTA

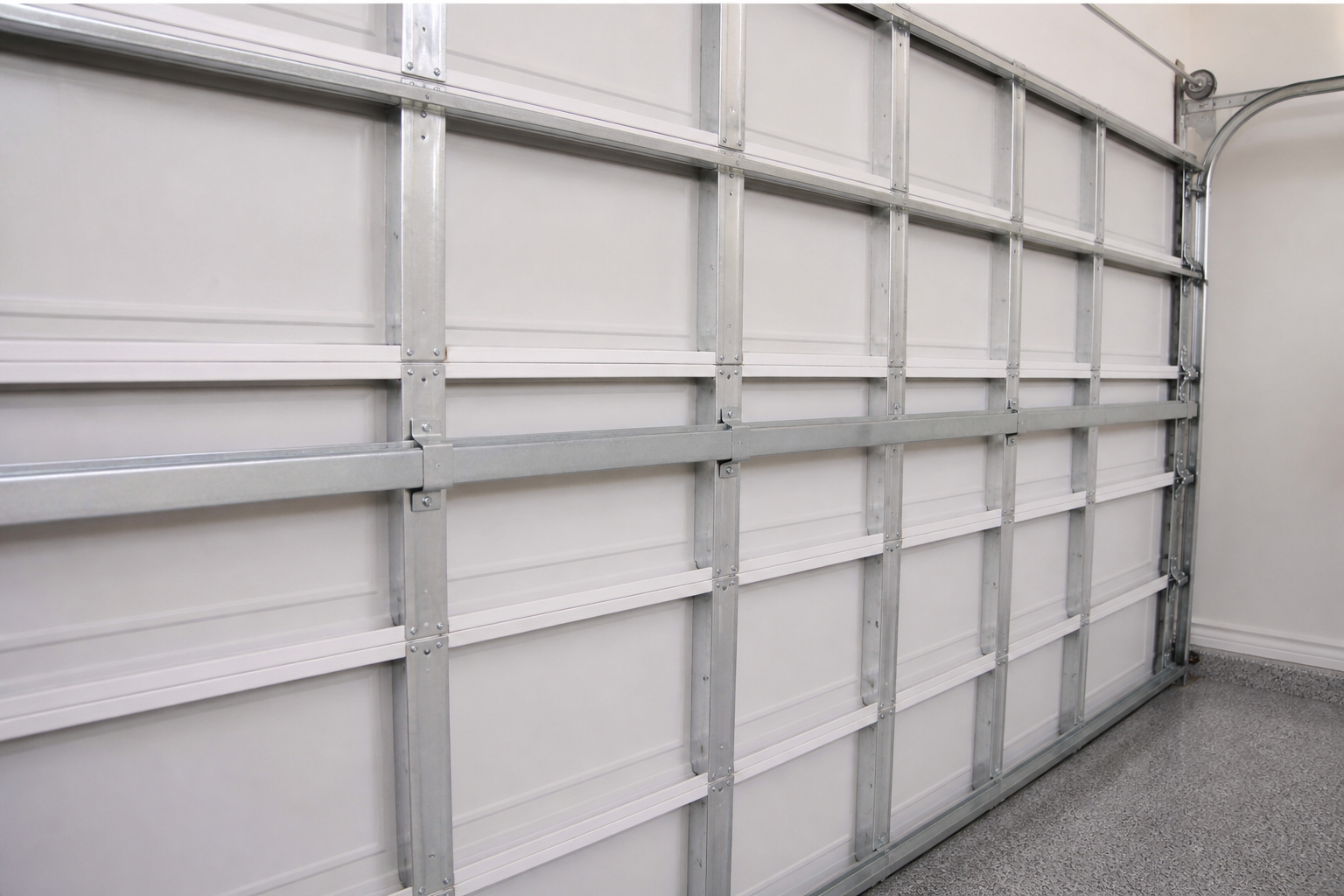

Horizontal struts stiffen wide door sections so panels do not bow under wind, opener pull, or their own span. When a strut kinks, fasteners pull through, or a double-wide door was built without enough reinforcement, the face ripples and hinges take the stress. Our licensed technicians replace bent struts, add channels where the span needs them, and restore a flat, controlled section.
- Bent strut replacement
- Reinforcement for 16' & 18' doors
- Wind-load stiffening across open exposures
- Written estimate before work begins
Stiff
Horizontal channels keep long panels true
Wide-Door Reinforcement
Why Long Spans Need Struts
A single-car door is short enough that centre hinges and the panel skin can usually hold the mid-span without a heavy channel. Stretch that same section across a sixteen- or eighteen-foot opening and the steel has more leverage to flex. Insulated sandwich panels add weight; an opener that pulls from a single top point adds lift force at the centre. Without struts, the face can oil-can, weather seals open at the joints, and centre hinges elongate at the fastener holes.
Across Vaughan, Markham, and newer subdivisions in the GTA, double-wide insulated doors are the default. Many left the factory with one strut on the top section and little else. That layout works until a wind event or years of cycling push the lower panels past their comfort zone. Adding or replacing struts is often cheaper than waiting for a cracked hinge line or a section that needs full panel replacement.
We size strut gauge and length to the section, fasten into structural ribs where the door design allows, and keep clear of roller paths and strut conflicts with the opener arm. The goal is a door that still flexes at the designed hinge lines — not a rigid slab that binds in the track. On carriage-house and heavily windowed sections, we also check that new channels do not conflict with glass frames or decorative overlays before drilling.
16'–18'
Common residential widths that benefit most from mid-span and bottom-section struts.
Top + mid
Many doors need more than a single top strut once insulation and wind enter the picture.
With hinges
Struts and upgraded centre hinges often travel together on the same written estimate.
Wind Load
Open Exposures Push Hard on Flat Panels
Lakefront corridors, elevated lots, and streets that act as wind tunnels put sustained pressure on a closed garage door. The panel face acts like a sail; without reinforcement, that pressure transfers into hinges, tracks, and the bottom seal. Homeowners notice it first as a fluttering or booming sound in a storm, then as a permanent bow after a particularly hard gust.
Struts do not turn a residential door into a commercial wind-rated assembly, but they reduce the mid-span deflection that starts the damage cascade. On doors that face open fields in Caledon or ridge lines in Richmond Hill, we often recommend reinforcement before another winter of lake-effect winds.
- Booming or drumming from the door face during storms
- Visible inward or outward bow at mid-panel after high wind
- Bottom seal that no longer kisses the floor evenly
- Centre hinge fasteners working loose after every windy week
- Opener that reverses because a flexed panel trips the sensors
Bent Strut Signs
How Damaged Reinforcement Announces Itself
A strut that has already bent is no longer doing its job — and may be concentrating stress at the remaining fasteners. These are the cues we hear from homeowners before we open the door from inside.
Fasteners pulled through
Elongated holes and stripped screws show the strut tried to hold while the panel moved. We relocate fasteners into sound material or use backing where the skin is thin.
Rippled exterior face
Oil-canning and soft spots across the mid-span often track to missing or failed reinforcement. Cosmetic paint waves can remain after a strut is added; structural flex should stop.
Gaps at horizontal joints
When the section flexes, weather seals open and daylight appears between panels. Pairing strut work with centre hinge inspection closes that path for drafts and pests.
Service Process
How We Repair and Add Struts
Most strut jobs do not require unloading the torsion springs, but we still secure the door and protect the opener arm before drilling or fastening across a live section.
Step 01
Map flex and damage
We cycle the door, push gently at mid-span, and mark which sections bow. Bent channels are photographed for the estimate; we note hinge and roller condition at the same time.
Step 02
Fit the right channel
Replacement or new struts are cut to section width, oriented so flanges clear hardware, and fastened into structural paths — not just the thin outer skin.
Step 03
Verify travel and seal
After install we run full open and close cycles, check for binding at the track, and confirm the bottom seal meets the floor without a mid-panel hump.
If a vehicle impact bent both the strut and the section skin, we discuss whether reinforcement alone is enough or whether a colour-matched panel is the lasting fix. Impacted bottom sections often need both: a new panel for appearance and structure, plus a strut so the replacement does not flex the way the old one did. Related general repair visits can combine strut work with track or roller service when those parts share the same wear timeline.
After a storm, walk inside with the door closed and sight along each section from the side. A healthy panel reads as a straight line interrupted only by the designed hinge joints. A soft wave in the middle of a long section is your cue to call before the next wind event finishes what the last one started. We stage common strut lengths on the truck for Vaughan and GTA routes so most residential reinforcement jobs finish in a single scheduled visit once the written estimate is approved.
Typical Ranges
Strut Repair Cost Guidance
Pricing scales with how many sections need channels and whether hinges or panels travel with the job. Ranges below are common for residential work across Toronto and surrounding cities.
$150–$300
Single strut
Replace one bent channel or add reinforcement to a single section with fastener repair.
$250–$400
Multi-section set
Two or more struts across a double-wide door for wind and span control.
$300–$500
Struts with hinges
Reinforcement paired with centre hinge upgrades when mid-span hardware is also worn.
FAQ
Garage Door Strut Questions
A strut is a horizontal steel channel or angle fastened across a door section to stiffen the panel. On wide doors, struts reduce flex from wind, opener pull, and the door's own weight so hinges and rollers stay aligned.
Double-wide insulated doors, long single sections, and doors facing open wind corridors often need one or more struts. If panels bow visibly when the door moves or after a storm, reinforcement is usually warranted.
Look for a kinked or bowed channel across the section, fasteners that have pulled through the panel, a soft or rippled door face, and gaps opening at the horizontal joints near centre hinges.
Replacing or adding a single strut commonly falls between $150 and $300. Multiple struts or reinforcement across several sections typically ranges from $250 to $500. You receive a written estimate before work begins.
A strut stiffens the section but does not remove a crease or impact dent. Severely damaged panels may need panel replacement in addition to new reinforcement.
Yes. Struts and centre hinges share the job of controlling mid-span flex. On many double doors we inspect and, when needed, upgrade both during the same visit. Call (647) 493-9256 to schedule from Vaughan.
Service Area
Strut Repair Across Toronto & the GTA
From Vaughan we reinforce and replace struts throughout York, Toronto, Peel, Halton, and Durham — especially on the double-wide insulated doors common in newer neighbourhoods.
Stiffen the Span
Request Strut Repair
Describe whether a strut is visibly bent, the door face bows in wind, or you want reinforcement added to a double-wide that never had enough. A technician reviews the request, stages the right channel lengths, and schedules the visit. Estimates are written before fasteners go in.
