Vertical and horizontal tracks guide every roller on your door. When a flange bends, a bracket loosens, or the pair drifts out of plumb, the door scrapes, binds, or climbs the rail until rollers leave the channel. Our licensed technicians straighten what can be saved, replace what cannot, and set both sides true so the door travels centred and quiet.
Tracks rarely fail on their own. Something pushes, pulls, or loosens them until the steel path is no longer a true rectangle. Understanding the cause decides whether we straighten, re-anchor, or replace a section — and whether related hardware must be replaced at the same time.
Backing into a partially open door is the classic track killer. The bottom section transfers force into the vertical rail, flaring the flange or putting a hard crease where rollers must pass. A door that looks only dented often has a pinched track that will grind nylon wheels on every cycle until the flange is corrected or the section is swapped.
Signal: crease near bottom bracketsWhen a lift cable snaps or a torsion spring fails, one side of the door falls while the other stays supported. Rollers slam sideways against the flange and can bend the vertical track outward. Straightening the rail without replacing the failed cable or spring only sets up the next exit. We inspect the full counterbalance system before locking the track geometry.
Signal: sudden tilt + loud bangYears of vibration work lag bolts free in soft or undersized framing. The track drifts away from the jamb a few millimetres at a time until rollers have room to climb the flange. You may notice the rail flexes when you press it by hand. The fix is not only tightening — it is re-anchoring into solid lumber or adding proper backing so the spacing holds.
Signal: track flexes by handGarage openings settle. One jamb can shift relative to the other so a track that was plumb at installation slowly leans. Winter ice at the threshold or packed grit in the channel shoves the door sideways on the first lift of a cold morning, especially when the verticals were already out of parallel. Plumb and level work plus debris clearing restores a predictable path.
Signal: scrape after a freezeHomeowners sometimes try to pry a flange back with a screwdriver or hammer. That usually adds a second bend higher on the rail and makes rollers worse, not better. Leave the door closed if it is already down, stop using the opener if you hear metal-on-metal scraping, and call Upright Garage Doors & Springs at (647) 493-9256. We are family-owned in Vaughan, with hours Sunday–Thursday 8am–10pm and Friday 8am–4pm; Saturday closed.
Most bent-track jobs start as noise or a light scrape. Catching the rail early often means a straighten-and-plumb visit instead of rollers on the floor and a panel crease.
Rollers brushing a flared flange produce a rhythmic scrape on the way up and a tick on the way down. The sound often appears on one side only — a clue that that vertical is out of plumb or bent at a hinge height.
A pinched section forces the opener to pull harder through a tight spot. Force settings may have been raised over time to “help,” which hides the track issue until a roller cracks or the trolley slips.
Look along the wall. A growing shadow between the vertical track and the jamb, or a rail that is not parallel to its twin, means brackets have moved. Parallel spacing is what keeps rollers centred in both channels.
When wheels climb the flange instead of riding the channel floor, nylon wears flat. Flat rollers make more noise and climb even easier — a feedback loop that ends in an off-track event if the rail geometry is ignored.
An out-of-plumb track can leave the closed door sitting slightly racked so weatherseal no longer meets the jamb evenly. Drafts and water along one side are sometimes a track problem, not only a seal problem. Related seal work is covered on our weatherstripping page.
Binding against bent steel can trip force reverse mid-travel even when sensors are aligned. Before replacing an opener, we verify the door moves freely by hand with the trolley disconnected — a core part of track diagnosis.
Guesswork with a hammer is not alignment. We measure, brace the door, correct the steel path, then cycle-test until travel is smooth on both sides.
We brace or clamp the door so panels cannot shift while brackets are loosened. The trolley is disconnected so we can move the door by hand and feel binding points without motor force masking the problem. If springs are still wound, that energy stays controlled before any track bolts come free.

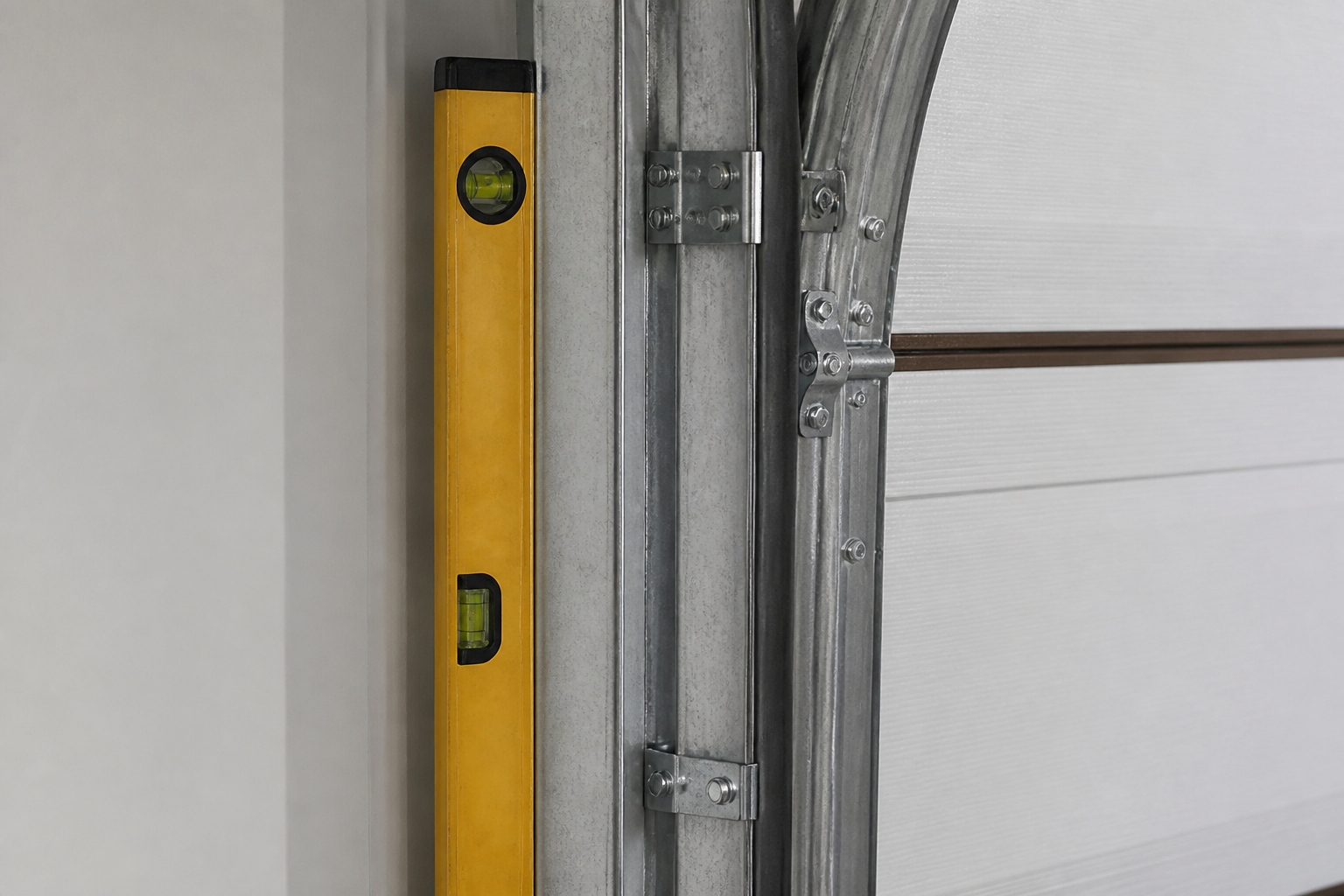

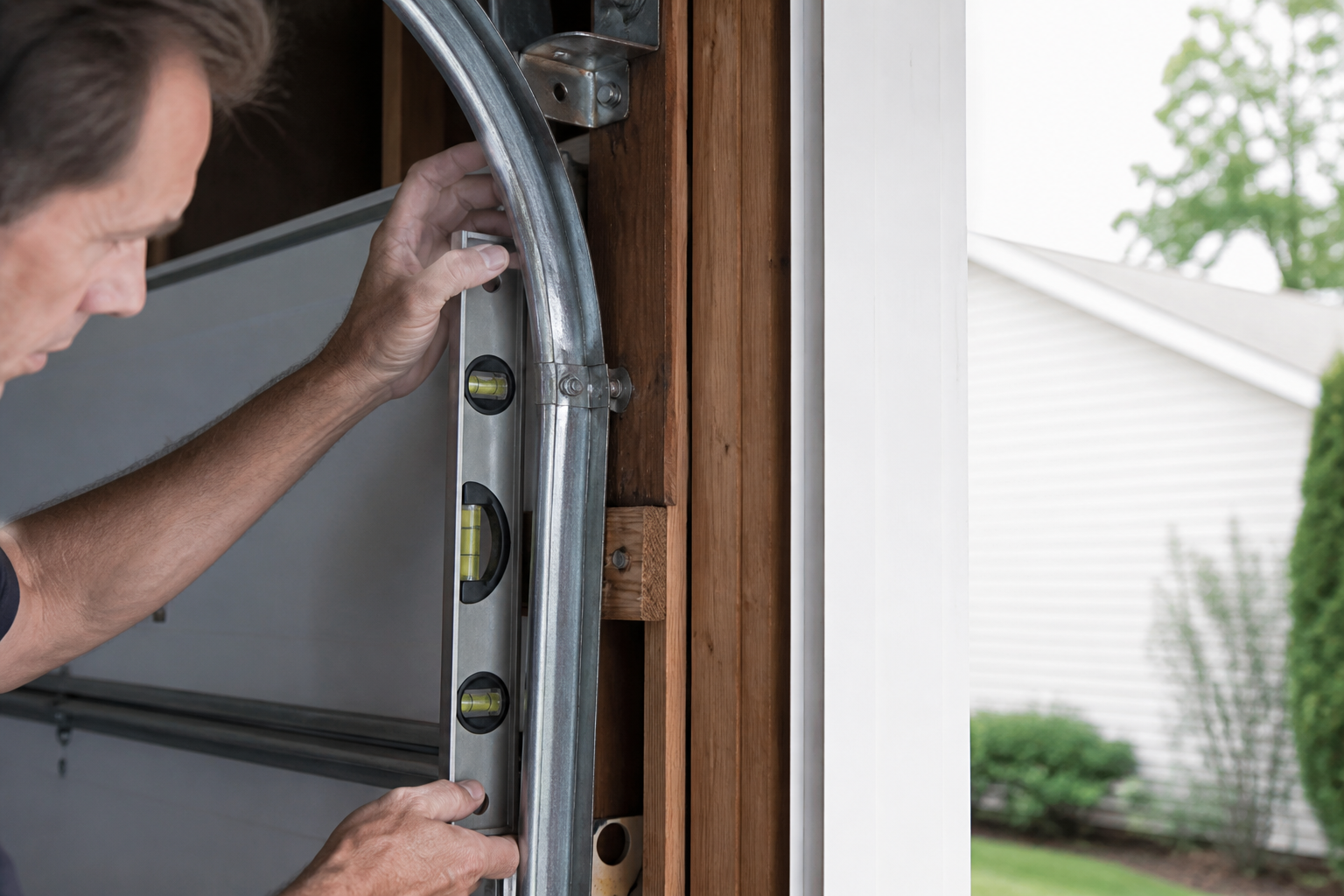

A long level and tape tell us how far each vertical leans, whether the horizontals are level into the backhangs, and whether left-to-right spacing matches the door width plus roller stem length. Photos of bent flanges and loose lag holes help explain the estimate clearly before tools come out.
Mild bends are worked carefully so the channel floor stays smooth for nylon wheels. Deep creases, cracked steel, or rails that spring back out of true are cut out and replaced with matching gauge track. Flag brackets and perforated angles are checked so the new section does not hang on fatigued hardware.
Lag bolts that spun in soft wood get new locations or proper backing. We set the verticals plumb and parallel, then lock the horizontal radius and backhangs so the door does not walk as it transitions overhead. Spacing that is too tight pinches rollers; spacing that is too wide lets them climb — both are corrected here.
Worn or flat rollers on the damaged side are replaced so new geometry is not wasted on bad wheels. We recheck spring balance, reconnect the opener, verify force and travel limits, and run multiple open-close cycles. The door should travel level, quiet, and stop cleanly without scraping the flange.
Homeowners often use the phrases interchangeably. The work is related but not identical — and many visits need both in one appointment.
The steel channel is the road. If the road is bent, flared, or no longer parallel, rollers cannot stay centred no matter how carefully you push them back in. Track repair restores geometry: plumb verticals, level horizontals, solid anchors, and a flange that guides rather than scrapes.
Typical scope overlaps with roller replacement when nylon wheels are already flat from climbing the rail.
Off-track means one or more rollers have already left the channel. The door may hang crooked, rest partway open, or sit with a panel edge outside the rail. Reseating without fixing a bent track is temporary — the next cycle can kick the roller out again.
Cable failures that yank a door sideways are covered on our cable repair page. General hardware diagnosis lives under garage door repair. If the door looks crooked but rollers are still inside the tracks, start with track plumb checks and a balance test before assuming the opener is at fault. A homeowner-facing overview of crooked doors is also in our crooked door guide.
Pricing depends on whether we are re-plumbing sound steel, straightening a mild bend, or replacing a vertical or horizontal section — and whether rollers, cables, or brackets ride along with the job. Every visit starts with a written on-site estimate so you know the number before work begins.
Verticals set true, brackets tightened or re-lagged into solid framing, minor flange touch-up, and a full cycle test. Common when vibration or soft wood let the rail drift without a hard crease.
Bent section work plus new rollers and/or lift cables when wear or a drop event damaged more than the rail. This is the most common residential range after impact or a cable snap.
Deep creases, cracked steel, or non-standard radius pieces are replaced rather than forced straight. Commercial profiles and custom lengths are measured and priced before ordering.
After track work, some openers need limit or force adjustments if they were previously set to fight a binding door. We only recommend opener attention when inspection shows the motor, trolley, or rail actually needs it — not as an automatic add-on.
From Vaughan we straighten and re-anchor residential tracks throughout York, Toronto, Peel, Halton, and Durham. The same crew handles related maintenance visits when tracks are still sound but rollers and hinges need lubrication and inspection.
Describe scraping, a visible bend, daylight at one edge, or a door that hesitates mid-travel. A technician reviews the request, confirms it is safe to wait with the door closed, and schedules a visit with levels, brackets, and common track sections on the truck. Estimates are written before any repair starts.
